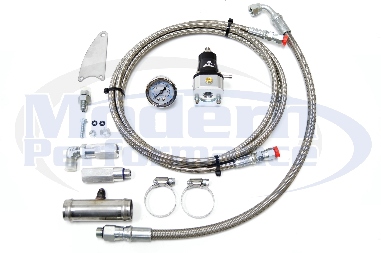

AGP Fuel Return Line Kit, 03-05 Neon SRT-4

Review star icon

Read or Write Review

Model Number: 220214

AGP Return Line Kit for SRT-4

Introducing the only aftermarket fuel return setup that regulates the fuel pressure BEFORE the fuel rail. What does this mean? Now it doesn't matter if you have a fuel rail with a schrader valve, nor do you need a custom fuel rail. Every stock fuel rail will work with this fuel return setup!

We start off at the heart of the kit with the industry's finest 1:1 adjustable fuel pressure regulator from Aeromotive. Connect the regulator to your stock fuel feed line with our custom CNC machined billet aluminum quick disconnect fittings.

Run the supplied braided stainless steel hose back to the filler line at the tank. All necessary fittings, hose, fuel pressure gauge, regulator bracket, nuts, bolts, and hose clamps are included to make this a complete fuel return kit. We also include a billet aluminum sleeve to block off the factory regulator in the stock fuel filter.

For those whom do not understand how a Fuel Pressure Regulator works, please pay attention. A regulator regulates pressure in the system, from the fuel pump all the way to the tip of the injector. It does not matter where in the system the regulator is placed, it will equalize the pressure through the entire system. For those that think that you lean out the #4 injector by placing the regulator before the rail, you do not understand how pressure works. Please, if you do not understand how this works, we ask that you refrain from bashing our kit. We have sold many kits over the past 3 years with no problems whatsoever. Our kit works, and it works very well. And you do not have to use an aftermarket fuel rail with it, so it saves you some extra cash.

$384.99

$384.99

AGP Fuel Return Line Kit, 03-05 Neon SRT-4, Fuel System: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
rob

Im running a full bolt on srt-4 stage2. @ what psi should i set it at idle

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  You will need to adjust your fuel pressure and tuning with an air/fuel mixture ratio gauge. At idle you should be at about 14.5-16 to one.
greg sullivan

will this works with say 500 hp on e85 which is a 25% increase in fuel volume i believe? if not,how much do you think it is good for on e85?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  The limitation between a 400hp car and a 600 hp car is not the return line system, its the pump, and injectors. This will handle whatever you throw at it just fine.
greg sullivan

does the fuel return line being in the filler neck stir up the gas and make bubbles that get sucked in by the stock fuel system? or will it being encased in the plastic housing be enough to keep a clean stream of gas without fluctuation in fuel pressure consistency ?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  This is not a problem with the return line system. If it was, we'd have problems with the hundreds, if not thousands of SRT-4's with this system that are making 400-600+ hp.
Darrin

Does this kits include directions on how to install it?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Yes instructions are included.
Quinton

What's the max amount of power you've seen from this kit?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This kit is not a limiting factor, its the injectors. You can easily change injectors and make another 50-150 horsepower over what you have if your turbo can support it.
Brady

If I get this return line kit and a full blown fuel rail, will it make any difference or should I just get the return line kit?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The are two benefits to an aftermarket fuel rail, is that it either allows for easier fuel return line hookup, OR it allows for hookup of a gauge to monitor fuel pressure. Because this kit is designed for the stock fuel rail, and the fuel pressure regulator has a gauge built in, its not necessary to buy an aftermarket fuel rail. Save your money.
Taylor

Will this hook directly up to a '03 rail, is there any benefit with the '03 rail over a '04-05 rail with this kit?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This connects regardless of what rail you have. 2003/2004/2005, this works on all fuel rails. No benefit with any certain rail with this as it works with all.
Marc

Can I use it with a boomba fuel rail ?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This is designed to work with the OEM fuel rail, however it can also work with any fuel rail that has a OEM style connection on it for the OEM plastic fuel hose to connect to. The Boomba has this connection so yes, it will work with the AGP fuel return line kit.
Matt

By installing this, will this be replacing the stock FPR?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Exactly. This return line kit from AGP disables the stock fuel pressure regulator so you can change the fuel pressure to your desired psi.
Zac

does this work the stage 3 fuel rail?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  2003 rail, 2004-2005 rail, stage 3 rail, etc, this works with them all.
Cody Keith

Will this work with a 08 caliber srt4?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  No. Only works for Neon SRT-4's.
Zack Treat

I am planning on throwing a 50trim turbo on my Srt4 and just wanted to know how important a fuel return line would be. My goals are around 400-450 I am getting 1000cc injectors and a Walbro high flow fuel pump.

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  When you install a bigger turbo, you need more fuel to make more power. You can either use a return line kit with larger injectors if you want more control over the fuel delivery yourself. Or you can use larger injectors, a Diablosport tuner and Diablosport custom tune. Either way will give you the same effect, except you have more control over timing, boost by gear, etc with the Diablosport.
Justin

Is this E85 safe? Also can it work with boomba fuel rail?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Yes, and Yes.
John Tanguay

Is this kit able to be used with the Caliber SRT4?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  No, definitely not, all the connections are different. It would be way easier to build your own from scratch or have a shop build one then trying to retrofit this Neon SRT4 part onto a Caliber SRT4.
Kevin

Can this kit be used on a 2004 pt cruiser turbo?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The fuel pump housing is completely different on the PT and therefore this kit will not work.
