MPx Big Front Mount Intercooler, 03-05 Neon SRT-4

Read or Write Review

Model Number: 220164-KIT

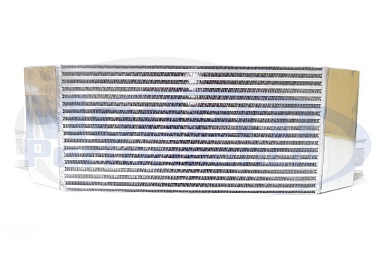

The MPx intercooler for the 03-05 Dodge SRT-4 features a 3.5 inch thick bar and plate core, 24 inch width, and 12 inch heigth. This size intercooler can support upwards of 550 HP!

This intercooler has predrilled mounting brackets for ease of installation, and factory type inlet and outlet so you can use your factory inlet and outlet piping to connect to it. It also has ONE PIECE CAST end tanks instead of multi piece welded end tanks for supreme strength! This piece is FAR superior strength wise to welded end tank intercoolers!

We have tested this piece on a 2004 SRT-4 with stage 1, intake, exhaust and gained 11 hp and 12 lbs of torque over the factory intercooler. On a 2004 Dodge SRT-4 with intake, exhaust, and stage 3 without toys the vehicle gained 19 hp, 21 lbs of torque, at the wheels OVER the factory intercooler.

So, wether you have a few bolt on parts, or a huge turbo and built motor, you can GAIN a good amount of power with this piece OVER the factory intercooler!

All purchases of MPx intercoolers with come with 4 FREE T bar clamps to clamp your factory hoses onto this intercooler. These T bar clamps are extremely important to use, because the factory hoses have a tendency to blow off at higher boost pressures. These clamps are wider, and because of their special locking feature, will NOT blow off, or slip!

Note: You must remove the factory crash bar in order to install this (as with any intercooler larger than the factory intercooler). Removing the factory crash bar is at your own risk, and may be illegal in some states.

B-Grade Option: Fully functionable with cosmetic issues with slight money savings. Limited Stock!!!

$399.99

$399.99

Additional Options

TM Intercooler Support Brackets 03-05 Dodge SRT-4

Model Number: 220164-BRACKETS

The sheetmetal that the intercooler bolts to on the Neon SRT-4 is very thin and can easily tear. SRT4 owner Tanner Read more

MPx Big Front Mount Intercooler, 03-05 Neon SRT-4, Intercoolers & Pressure Piping: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
ryan

Will this work on a 06 pt cruiser gt? If not, is there any here that will? Thank you

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Modern Performance

  This intercooler will not fit the PT Cruiser turbo.
Craig

How much does this intercooler weigh?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  The weight is 24 lbs.
Orlando

Would this intercooler work with the stock turbo?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  We would not recommend this intercooler for use with stock turbo with stock 13-14 psi boost levels but once boost pressure us increased, i.e., 17-20+ psi
Evan

Can you run ac with this intercooler or do you have to take it out

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The AC condenser is left in place, and is not modified. So, AC will continue to work perfectly.
chris

Does the bumper need to be cut to fit this and if so is there a write up anywhere?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  No, there is absolutely no cutting involved with installing this piece.
Jay

Can I use the stock intercooler piping on the Big Mount intercooler?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Yes of course. If it didnt work with stock piping, then we would mention it, or include new piping.
Omair

I am wondering if this a good option for me. I have a few bolt on parts. (Intake, catless down pipe, side exit exhaust, DSP 93 tune) Will this be a good option if i am still running a stock turbo, or no? I plan to get the adjustable wastegate as well

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Like we mentioned above in the Q&A, if you have stock boost levels we do not recommend using this. However, once you increase the boost levels higher with the stock turbo, the air temperatures will raise, and this intercooler will help lower the temperatures back down. So, yes, this will be very beneficial even with a stock turbo with higher boost levels!
