Whats the difference between this Air/Fuel gauge and the other digital Air/Fuel gauge from AEM? There are two big selling features of this particular model. It has a much larger display, and it is ultra compact, being less than one inch in depth, it allows for more installation flexibility.

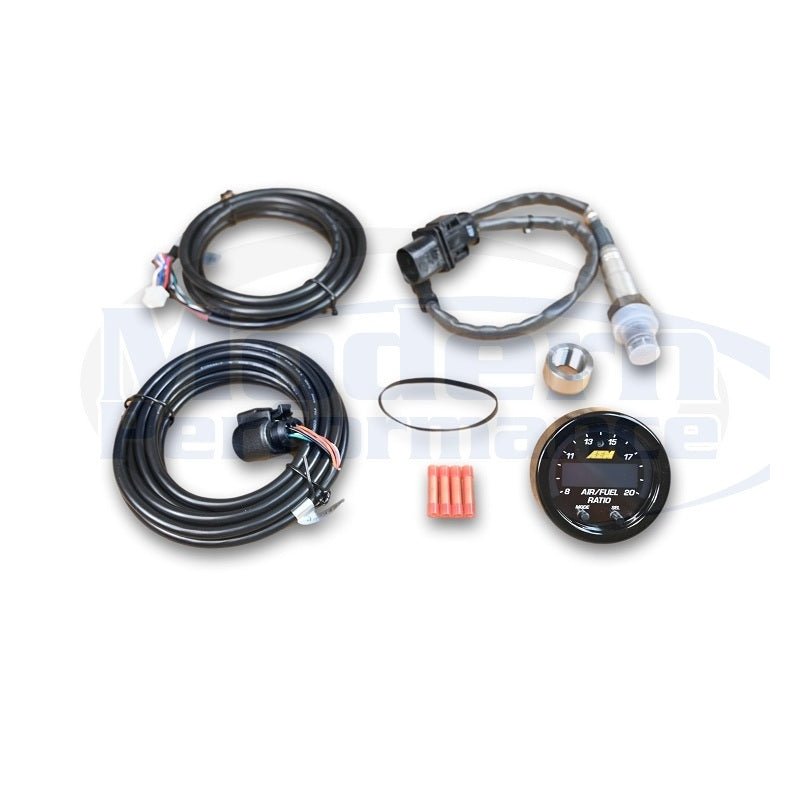

The X-Series wideband UEGO AFR sensor controller gauge (PN 30-0300) features a modern, visually striking faceplate and new seven-segment, center display that is 87% larger than the 30-4110 AEM
The gauge includes a 0-5v and RS232 Serial Port output for feedback control and data logging, and an AEMnet (CANbus) output for data logging.
X-Digital wideband technology gives these controllers the ability to read and report values that other controllers do not, which can deliver more optimized engine tuning and a safer overall operating condition. Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune.
The X-Series Wideband UEGO AFR Sensor Controller Gauge is the common 52mm or 2 1/16 inch size for easy mounting. Its slim depth (less than one inch overall) and ultra-slim cup depth of .200-inches dramatically increases its application base and potential mounting locations.
The X-Series Wideband UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge's durability.
