AGP Turbo Upgrade Kit, 03-05 Neon SRT-4/PT Cruiser Turbo
AGP Turbo Upgrade Kit, 03-05 Neon SRT-4/PT Cruiser Turbo
AGP Turbo Upgrade Kit, 03-05 Neon SRT-4/PT Cruiser Turbo
AGP Turbo Upgrade Kit, 03-05 Neon SRT-4/PT Cruiser Turbo

AGP Turbo Upgrade Kit, 03-05 Neon SRT-4/PT Cruiser Turbo

    Model Number:
5.0 (1)
$1,349.99 - $3,200
/

Ready to take your SRT-4 or PT Cruiser Turbo to the next level? AGP's complete turbo upgrade systems deliver serious horsepower potential, excellent spool characteristics, and proven performance for everything from aggressive street cars to high-horsepower race builds.



AGP has been developing and refining turbocharger systems for the Dodge Neon SRT-4 since 2006. With years of research, testing, and real-world racing experience, AGP offers a wide selection of turbocharger combinations designed to meet nearly any performance goal.



Whether you're looking for a responsive 350–400 WHP street setup or building a 600–700+ WHP monster, AGP has a turbocharger combination to get you there.



Best of all, these kits are designed to bolt into the SRT-4 engine bay without cutting, hammering, or modifying the firewall for clearance.



Important: Turbocharger Is Optional!



The advertised starting price does NOT include a turbocharger.



We offer these kits both with and without a turbocharger to accommodate customers who already own a compatible turbo or want to purchase one separately.

  • Base Kit: Includes the turbo upgrade installation components, but no turbocharger.

  • Complete Turbo Kit: Includes the installation components plus your selected turbocharger.



Simply choose your preferred turbocharger from the drop-down menu. Pricing automatically adjusts based on your selection.

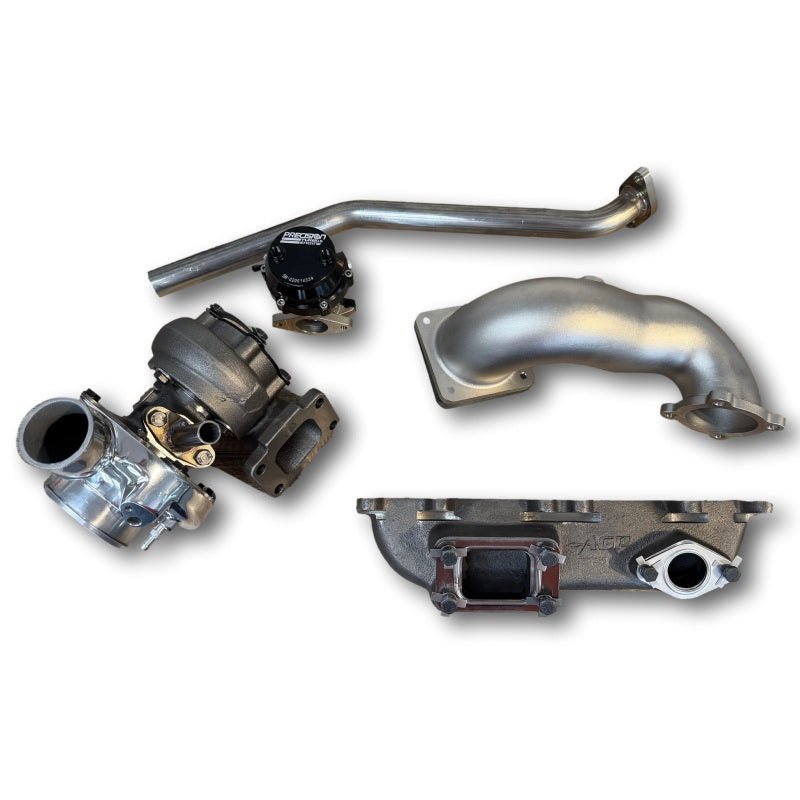

Please note: Some product photos show a complete kit with a turbocharger installed. Your order will include only the components associated with your selected configuration.

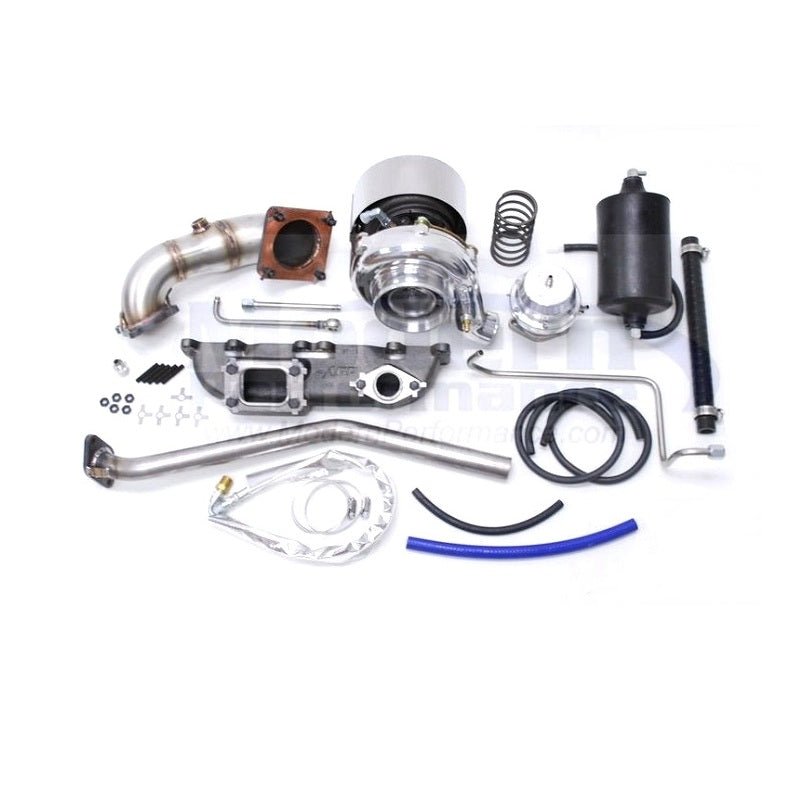

What's Included in the AGP Turbo Upgrade Kit?

  • AGP T3 exhaust manifold

  • Heavy-duty 3" cast O2 housing

  • Precision 39mm external wastegate

  • Stainless steel wastegate dump tube

  • Turbocharger oil feed and drain lines

  • Turbocharger coolant lines, when applicable

  • Coolant overflow bottle

  • Installation gaskets and hardware

  • Your selected turbocharger and stainless steel heat shield, when purchasing a complete turbo kit



2025 Update: AGP upgraded these kits with a stronger cast O2 housing, replacing the earlier fabricated stainless steel design shown in some of our older photos.



Important: An exhaust manifold-to-cylinder-head gasket is NOT included and must be purchased separately.

Required Supporting Modifications

Installing a larger turbocharger is only part of building a reliable, high-horsepower SRT-4.

To take full advantage of your AGP turbo kit, you will need the appropriate supporting modifications:

  • 3" Cold Air Intake: A high-flow intake is essential. Some turbochargers require a special 4"-to-3" reducer.

  • External Blow-Off Valve: An aftermarket blow-off valve setup is required.

  • 3" Exhaust System: A free-flowing exhaust helps reduce backpressure and maximize turbocharger performance.

  • Fuel System Upgrades: Larger fuel injectors, upgraded fuel pumps, and additional fuel system components may be necessary depending on your horsepower goals.

  • Proper Engine Tuning: Custom ECU tuning is required to safely operate your upgraded turbocharger.



For higher-horsepower builds, we also strongly recommend an upgraded front-mount intercooler.

While the Neon SRT-4 comes equipped with a factory intercooler, it becomes increasingly restrictive as airflow and boost pressure increase. A larger, more efficient intercooler can significantly improve charge-air cooling and overall performance.

Choosing the Right Turbocharger

Not sure which turbo is right for your build? The best choice depends on your horsepower goals, driving style, fuel type, and supporting modifications.

Smaller turbochargers generally spool faster, providing excellent low- and midrange response for street driving. Larger turbochargers offer greater top-end horsepower potential, but typically require more RPM to reach full boost.

For most street-driven SRT-4s, a responsive turbo capable of producing 400–500 WHP offers an excellent balance of acceleration, drivability, and horsepower.

For customers seeking 600 WHP or more, larger turbochargers provide the airflow necessary to reach those goals, provided the engine, fuel system, and drivetrain are properly prepared.

Available Turbocharger Options

AGP Ball Bearing Turbochargers

AGP 50-Trim Ball Bearing

One of the original benchmarks for street-driven SRT-4 turbo upgrades, the AGP 50-Trim remains an excellent choice for customers seeking strong performance without sacrificing responsiveness.

Available in two turbine housing configurations:

  • .48 A/R: Full boost around 3,100–3,200 RPM. Capable of 400+ HP with appropriate supporting modifications and fuel. Ideal for responsive street driving.

  • .63 A/R: Full boost around 3,500–3,600 RPM. Capable of 500+ HP with supporting modifications.

Features a 4" compressor inlet and 2" outlet.

BorgWarner Journal Bearing Turbochargers

BorgWarner Z251SX – Approximately 450 WHP Potential

An excellent choice for customers looking for a responsive street turbocharger with plenty of power potential.

  • Rated airflow: 47 lb/min

  • Full boost: Approximately 3,000 RPM

  • Typical output: 340–360 WHP at 20 PSI with proper tuning

  • Maximum potential: Approximately 450 WHP at 29 PSI

  • Turbine housing: .48 A/R

BorgWarner Z256SX – Approximately 510 WHP Potential

A great step up for customers wanting additional top-end horsepower while maintaining good street manners.

  • Rated airflow: 55 lb/min

  • Full boost: Approximately 3,500 RPM

  • Typical output: 360–380 WHP at 20 PSI with proper tuning

  • Maximum potential: Approximately 510 WHP at 30 PSI

  • Turbine housing: .63 A/R

BorgWarner S252SX-E FMW – 500+ HP Potential

Featuring BorgWarner's forged milled compressor wheel technology, the S252SX-E combines excellent spool characteristics with strong airflow capabilities.

  • Full boost: Just over 3,000 RPM with .48 A/R housing

  • Full boost: Approximately 3,400 RPM with .63 A/R housing

  • Power potential: 500+ HP

  • Compressor inlet: 3.5"

A special intake reducer is required.

BorgWarner Z256-RS – Up to 550 WHP Potential

One of AGP's most popular BorgWarner turbo combinations, the Z256-RS offers an excellent balance of midrange response and serious top-end horsepower.

  • Rated airflow: 55 lb/min

  • Full boost: Approximately 3,600 RPM with .63 A/R housing

  • Demonstrated output: Approximately 540 WHP and 535 WTQ at 30 PSI

  • Maximum potential: Approximately 550 WHP

  • Compressor inlet: 4" ported shroud

  • Compressor outlet: 2"

BorgWarner S257SX-E FMW – 600+ WHP Potential

The S257SX-E features a modern forged milled compressor wheel capable of flowing approximately 65 lb/min.

This turbo offers spool characteristics comparable to the older S256-RS while providing substantially greater airflow and top-end horsepower potential.

  • Rated airflow: 65 lb/min

  • Power potential: 600+ WHP with appropriate supporting modifications

  • Compressor inlet: 3.5"

A special intake reducer is required.

BorgWarner Z262SX-E FMW – Approximately 660 WHP Potential

For serious high-horsepower applications, the Z262SX-E delivers exceptional airflow while maintaining surprisingly responsive spool characteristics for its size.

  • Rated airflow: 70 lb/min

  • Full boost: Below approximately 4,000 RPM with .63 A/R housing

  • Power potential: Approximately 660 WHP

  • Compressor inlet: 4" ported shroud

  • Compressor outlet: 2"

AGP recommends the .82 A/R turbine housing for customers seeking maximum horsepower.

Garrett GT Ball Bearing Turbochargers

Garrett GT3071R – Up to 425 WHP

An excellent choice for customers who prioritize fast spool, responsive street driving, autocross, or road racing.

  • Full boost: Approximately 3,100 RPM

  • Maximum potential: Approximately 425 WHP at 28 PSI

  • Turbine housing: .63 A/R

  • Compressor inlet: 4"

  • Compressor outlet: 2"

Garrett GT3076R – Up to 520 WHP

A popular middle-ground option offering excellent power potential without moving into the larger GT35 turbocharger range.

  • Full boost: Approximately 3,400 RPM

  • Maximum potential: Approximately 520 WHP at 33 PSI

  • Turbine housing: .63 A/R

  • Compressor inlet: 4" ported shroud

  • Compressor outlet: 2"

Garrett GT3582R – Up to 630 WHP

Designed for customers seeking substantially more horsepower, the GT3582R uses a larger GT35 turbine wheel to help reduce exhaust backpressure.

  • Full boost: Approximately 3,700–3,800 RPM with .63 A/R

  • Full boost: Approximately 4,100–4,200 RPM with .82 A/R

  • Maximum potential: Approximately 630 WHP at 40 PSI

  • Compressor inlet: 4" ported shroud

  • Compressor outlet: 2.5"

AGP recommends the .82 A/R turbine housing for maximum performance.

Garrett GTX Ball Bearing Turbochargers

Garrett's GTX series incorporates modern forged, fully machined compressor wheels for improved airflow and increased horsepower potential compared to the earlier GT series.

Garrett GTX3071R – Approximately 500 HP Potential

  • Full boost: Approximately 3,100 RPM

  • Approximately 50–60 HP more potential than the GT3071R

  • Turbine housing: .63 A/R

  • Compressor inlet: 4"

  • Compressor outlet: 2"

Garrett GTX3076R – Approximately 600 HP Potential

  • Full boost: Approximately 3,400 RPM

  • Forged billet compressor wheel

  • Turbine housing: .63 A/R

  • Compressor inlet: 4" ported shroud

  • Compressor outlet: 2"

Garrett GTX3582R – Approximately 730 HP Potential

  • Full boost: Approximately 3,700–3,800 RPM with .63 A/R

  • Full boost: Approximately 4,100–4,200 RPM with .82 A/R

  • Maximum potential: Approximately 730 HP

  • Recommended turbine housing: .82 A/R

Precision Turbochargers

Precision offers a wide range of turbochargers for customers seeking everything from responsive street performance to extremely high horsepower.

The following are approximate manufacturer-rated horsepower capabilities, not guaranteed wheel horsepower figures.

Turbocharger HP Rating Recommended Turbine Housing
Precision 5431E 500 HP .63 A/R
Precision 5531E 520 HP .63 A/R
Precision 5731E 540 HP .63 A/R
Precision 5831E 585 HP .63 A/R
Precision 5858SP 620 HP .63 A/R
Precision 5862SP 640 HP .63 A/R
Precision 6262SP 705 HP .63 / .82 A/R
Precision 6266SP 735 HP .63 / .82 A/R
Precision 6766SP 935 HP .82 A/R

For the Precision 6262 and 6266, AGP generally recommends the .63 A/R turbine housing for applications targeting up to approximately 600 HP, and the larger .82 A/R housing for higher horsepower goals.

Some Precision models are available with upgraded ball bearing center sections. Please refer to the drop-down menu for currently available configurations.

Additional Customization Options

Polished Compressor Housing and Heat Shield

AGP offers optional polishing for customers who want a show-quality appearance in their engine bay.

Ceramic Coating

Optional black or silver ceramic coatings are available for selected exhaust components, including the manifold, turbine housing, O2 housing, and wastegate dump tube.

In addition to improving appearance, ceramic coatings can help reduce radiant heat in the engine compartment.

Wastegate Dump Reroute

AGP offers optional wastegate dump reroute configurations for customers who prefer a quieter exhaust setup when the external wastegate opens.

Please contact us for availability and pricing on these custom options.

Important Ordering and Shipping Information

Built to Order: AGP turbo upgrade kits are custom assembled and typically require approximately 2–4 weeks before shipping.

These kits ship directly from AGP and are not normally stocked at Modern Performance.

Turbocharger Selection: If a particular turbocharger is not available in the selection menu, that combination may have been discontinued or may no longer be offered.

2026 Turbocharger Updates: Several older BorgWarner models have been discontinued or replaced by updated Z-series configurations, including the Z251SX, Z256SX, and Z262SX-E. Availability of certain Precision ball bearing and older BorgWarner configurations is also changing.

Please note: Turbocharger horsepower ratings and spool estimates are approximate. Actual results depend on engine modifications, fuel, boost pressure, tuning, exhaust configuration, and other factors.

Vehicle Applications

  • 2003–2005 Dodge Neon SRT-4

  • Chrysler PT Cruiser Turbo / GT — contact us to confirm fitment and installation requirements for your specific model year.
